Mantis 45A SBEC

Product type   Mantis 45A SBEC 5A
Model Number    2045201
Type brushed/brushless brushless
  High Voltage / Normal Normal
Specifications Continuous Current 45A
  Burst Current 65A
  Battery Cell 5-18NC/2-6Lipo
  BEC output 5.0V5.5V6.0V ajustable/5A

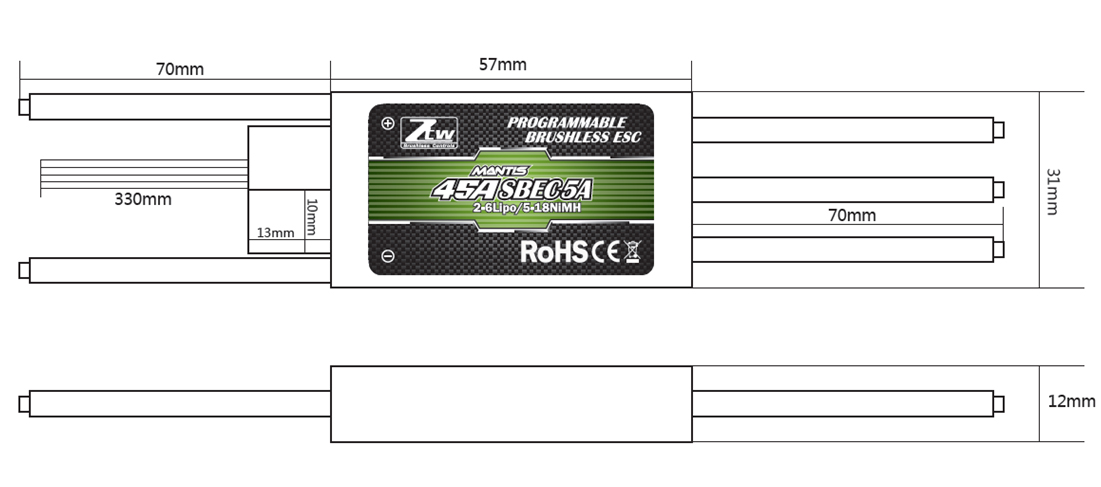

Size Width 31mm
  Length 57mm
  Height 12mm
  Weight 47g
Wires & Connectors Power  Wires 14#AWG,70mm-Red/70mm-Black
  Motor Wires 14#AWG,70mm-Black
  Signal  Wires (Brownorange and red)60C,330mm a special JR male plug at one side
  Signal  Wires 2
  Power plug  no
ESC Programing via Transmitter  yes
  AIR Program Card
  LED Program Card yes
  LCD Program Card
  WiFi Module
  USB program connector
Firmware Firmware Upgrade

Tone of value

Prog.Item
BEEP- BEEP-
BEEP-
BEEP-
BEEP-BEEP-
BEEP-
BEEP-  BEEP-
BEEP-
BEEP— BEEP—
BEEP-
BEEP—
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP-
Brake Type Brake OFF Soft Brake  Mid Brake  Hard Brake
Battery Type NiCd/NiMH LiPo LiFe
Cut Off Voltage Threshold 2.8V/50% 3.0V/60% 3.2V/65% No Protection
Restore Factory Setup Defaults Restore
Motor Timing Auto 15° 22° 30°
SBEC Voltage Output 5.0V        6.0V   7.4V 8.4V
Governor Mode RPM OFF 1st Soft Start 2nd Soft Start Governor Mode 1 Governor Mode 2
Motor Rotation Forward Reverse
Start Up Strength 10% 15% 20% 25% 30% 35% 40% 45% 50%
Low Voltage Cut Off Type Reduce Power Cut Off  Power
